3Gb/s 1310nm 10km DOM LC SMF Single Transmitter Video Pathological Patterns Transceiver Module MSA Pinout
Functional Specification
| Product Name | 3G HD/SDI SFP Transmitter | Part Number | GTS-L1330-40DCT |
| Bandwidth | 50Mbps - 2.97Gbps | Pin Assignment | MSA |
| Module-Type | Single TX | Temperature Range | Commercial |
| Center Wavelength (TX) | 1310nm | Cable | 10-kilometer |
| Connector | LC Simplex | Fiber-Type | SMF |
| LD Type | DFB Laser | PD Type | N/A |
| Power Supply Voltage | +3.3V | Total Current (Max) | 400mA |
| TX Output Power | -5~0dBm | ER. | >5.0dB |
| Pathological Patterns | With | DDMI | Supported as default |
| OEM/ODM | Supported | Protocols | SFP MSA |
| Applications | SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M |
Description
Gigaopto’s GTS-L1330-40DCT 3G SDI Single Transmitter Module is a dual channel optical single mode transmitter module designed to transmit optical serial digital signals as defined in SMPTE 297-2006.
It supports from 50Mbps to 3Gbps and is specifically designed for transmitted the SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M SDI pathological patterns.
This transmitter consists of two sections: a DFB laser transmitter and MCU control unit. All modules satisfy class I laser safety requirements,it can transmit signal from 50Mbps to 3Gbps transmission reach up to 40km with 3Gbps pathological signals.
It is with the SFP 20-pin connector to allow hot plug capability, full compliant with SFP MSA, SFF-8472 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.
It is suitable for high-definition digital broadcasting applications.
Features
- Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
- SMPTE 297-2006 Compatible
- Robust error free transmission of signals from 50Mb/s to 3Gb/s & up to 40km single-mode fiber
- 1310nm DFB laser
- Metal enclosure for Lower EMI
- Compliant with SFP MSA and SFF-8472
- Digital Diagnostic Monitoring
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature: Standard: 0 to +70°C
Application
- 3G-SDI/HD-SDI/SD-SDI Electrical-Optical Converter
- 3G-SDI/HD-SDI/SD-SDI Optical-Electrical Converter
- Remote digital display or security surveillance systems
- Professional video broadcast
- Digital cinema system

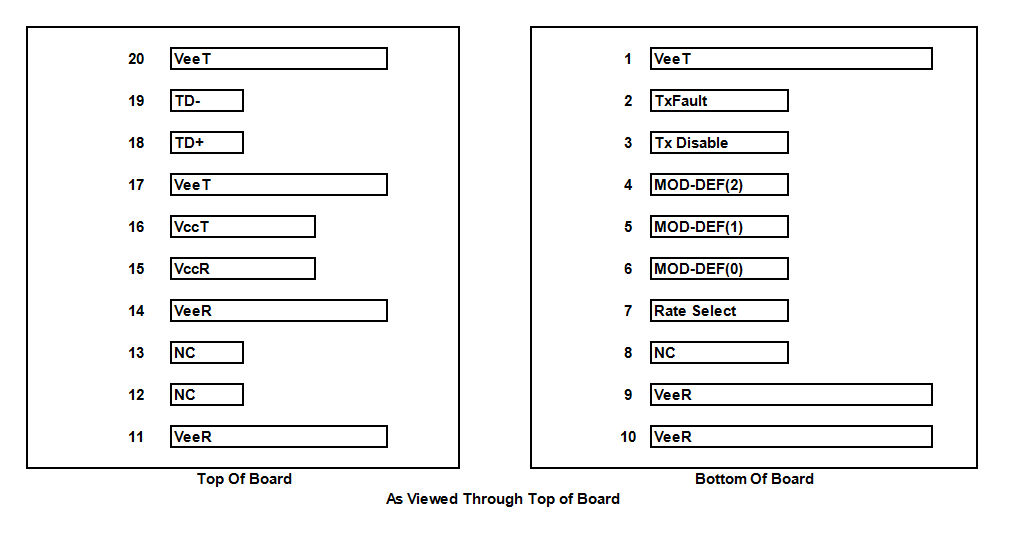

PIN Definition
HD-SDI SD-SDI 3G-SDI SFP Video TX1310nm 40KM Transmitter Only
Note: Society of Motion Picture and Television Engineers short for SMPTE has standards for handling high definition video signals with pathological pattern. SMPTE's standards currently call for 259M (SD-SDI), 344M (ED-SDI), 292M (HD-SDI) and 424M (3G-SDI).
SMPTE 297-2006: This standard defines the fiber optic interface for the transmission and reception of SDI signals at various data rates: 3G ~ 12G
SMPTE 259M: 143 through 360 Mb/s
SMPTE 344M: 540 Mb/s
SMPTE 292: 1.485 and 1.485/1.001 Gb/s
SMPTE 424M: 2.97 and 2.97/1.001 Gb/s
These bit-rates are sufficient for 1080p video at 50 or 60 frames per second.
