3Gbps MSA Digital Video SFP BiDi 1310nm TX 1550nm RX 10km Transceiver Module For SD/HD/3G-SDI

Brand Name : Gigaopto

Model Number : GTS-B3530-10DC

Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL

Place of Origin : Shenzhen, China

MOQ : 1

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 50,000pcs/month

Delivery Time : 1-5 work days

Packaging Details : Static bag, Plastic bag, Retail box or by required

Product Name : 3G Digital Video BiDi SFP

Bandwidth : 50 Mbps - 2.97 Gbps

Wavelength : 1310nm-Tx/1550nm-RX

Optical Components : DFB+PIN

Connector : Simplex LC

Transmission : 10km for 3G-SDI

Warranty : 3 years

Keywords 1 : SD/HD/3G SFP BiDi Transceiver Module

Keywords 2 : 3G SDI BiDi 1310nm/1550nm 10km

Contact Now

3G BiDi SFP 1310nm-TX/1550nm-RX 10km Video Pathological Patterns Transceiver Module for SD/HD/3G-SDI LC SMF DMI MSA Pinout

Functional Specification

Product Name 3G Digital Video BiDi SFP Part/Number GTS-B3530-10DC
Data Rate 2.97Gb/s MSA Pinout Yes
Module-Type Transceiver Operating Temp. 0°C to 70°C
Wavelength 1310nm-TX/1550nm-RX Distance 10km
Connector LC Media SMF
Transmitter Type DFB BiDi Receiver Type PIN
Power Supply Voltage 3.3V Total Current (Typical) 200mA
TX Optical Power -5~0dBm Receive Sensitivity < -18dB (PRBS 223-1, BER=1E-12 )
Extinction Ratio >5.0dB Powerbudget 13dB
Pathological Patterns default Diagnostics Yes
OEM/ODM Supported Warrnty 3 years
Application SD/HD/3G SDI

Description

Gigaopto’s GTS-B3530-10DC is 1 fiber Bidirectional SFP optical transceiver module designed to transmit and receive optical serial digital signals as defined in SMPTE 297-2006.

The transceiver is designed to transmit/receive data rates from 50Mbps to 2.97Gbps and supports SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rate,a maximum distance of 10 km is achievable with 3Gbps pathological signals over a single-mode fiber (SMF) with a simplex LC connector

The transceiver consists of three sections: a 1310nm DFB laser transmitter, a 1550nm PIN photodiode integrated with a trans-impedance pre-amplifier (TIA) , Reclocker ,and a MCU controller. The transceiver is compliant with SFP Multi-Source Agreement (MSA), It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C.

Features

  • SD/HD/3G-SDI SFP Transceiver
  • SMPTE 297-2006 Compatible
  • Hot-Pluggable SFP
  • Bandwidth from 50 Mb/s to 2.97 Gb/s
  • Optical Link up to 10km for 3G-SDI
  • Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
  • 1310nm-TX DFB Transmitter and 1550nm-RX PIN photo-detector
  • Hot-pluggable SFP footprint
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic functions available through the I2C interface
  • +3.3V single power supply
  • Low Power Consumption
  • Commercial operating case temperature range: 0℃ to 70℃
  • RoHS compliant and Lead-Free

Application

  • 3G-SDI/HD-SDI/SD-SDI Electrical-Optical Converter
  • 3G-SDI/HD-SDI/SD-SDI Optical-Electrical Converter
  • HD Camera or Monitor System
  • High-density digital video routers & switches

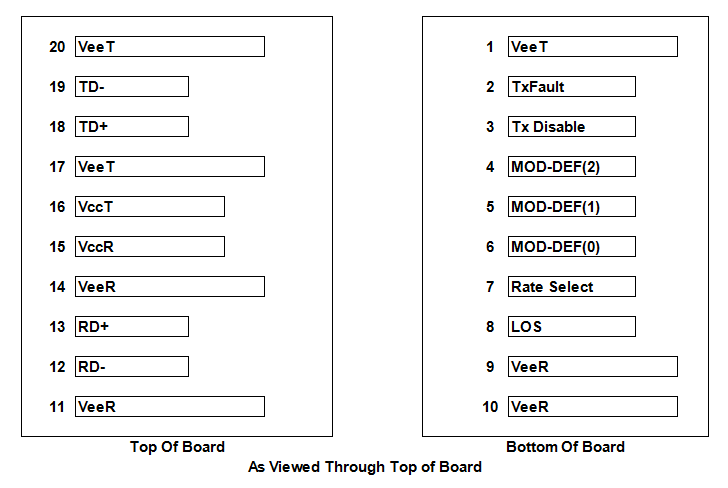

PIN Definition
